| 基礎描述 | 13" IPS + Intel N5095 +8GB + 128GB + WiFi 5 + 1000Mbps千兆網 + HDMI2.0 X1+ USB3.0 X 4 | |
| 產品形態與標準配置: | ||
| 類型 | 描述 | 規格 |
| 尺寸及重量 | Form Factor | 13寸工控一體機電腦 |
| Dimensions | 317.5*196*37.5mm | |
| Weight | 1.05kg | |
| 顯示屏 | Screen Size | 13" |
| Screen Resolution | 800*1280 (IPS ) | |
| 觸摸屏 | Touch Module | G+G 10 Multi-Touch |
| 電池 | Type | Rechargeable lithium polymer |
| Capacity | Optional 5000mAh/7.6V（電池可選） | |
| Working Time | 4.5 hours (HD local video display) | |
| 系統描述 | ||
| 類型 | 描述 | 規格 |
| CPU | Type | Intel Celeron N5105/N5095 |
| Speed | 2.0GHz ~ 2.90GHz | |
| 顯卡 | Type | Intel UHD Graphics |
| 內存 | Capacity | 8GB/(Optional) LPDDR4 |
| 存儲 | eMMC | 128GB(Optional) |
| NVME | ×1pc | |
| SATA 2.5“ HDD | / | |
| 喇叭 | Built-in | Optional 8Ω/1W |
| 麥克風 | Built-in | Optional |
| 重力感應器 | Built-in | Yes |
| 網絡配置 | ||
| 類型 | 描述 | 規格 |
| WiFi | RTL8852BE-CG | WiFi5 |
| 藍牙 | RTL8852BE-CG | Bluetooth 5.0 |
| 網口 | RJ-45 | 1000Mbps Gigabit Lan |
| 接口 | ||
| 類型 | 描述 | 規格 |
| USB Interface | USB3.0 | ×4pc（5V/1A) |

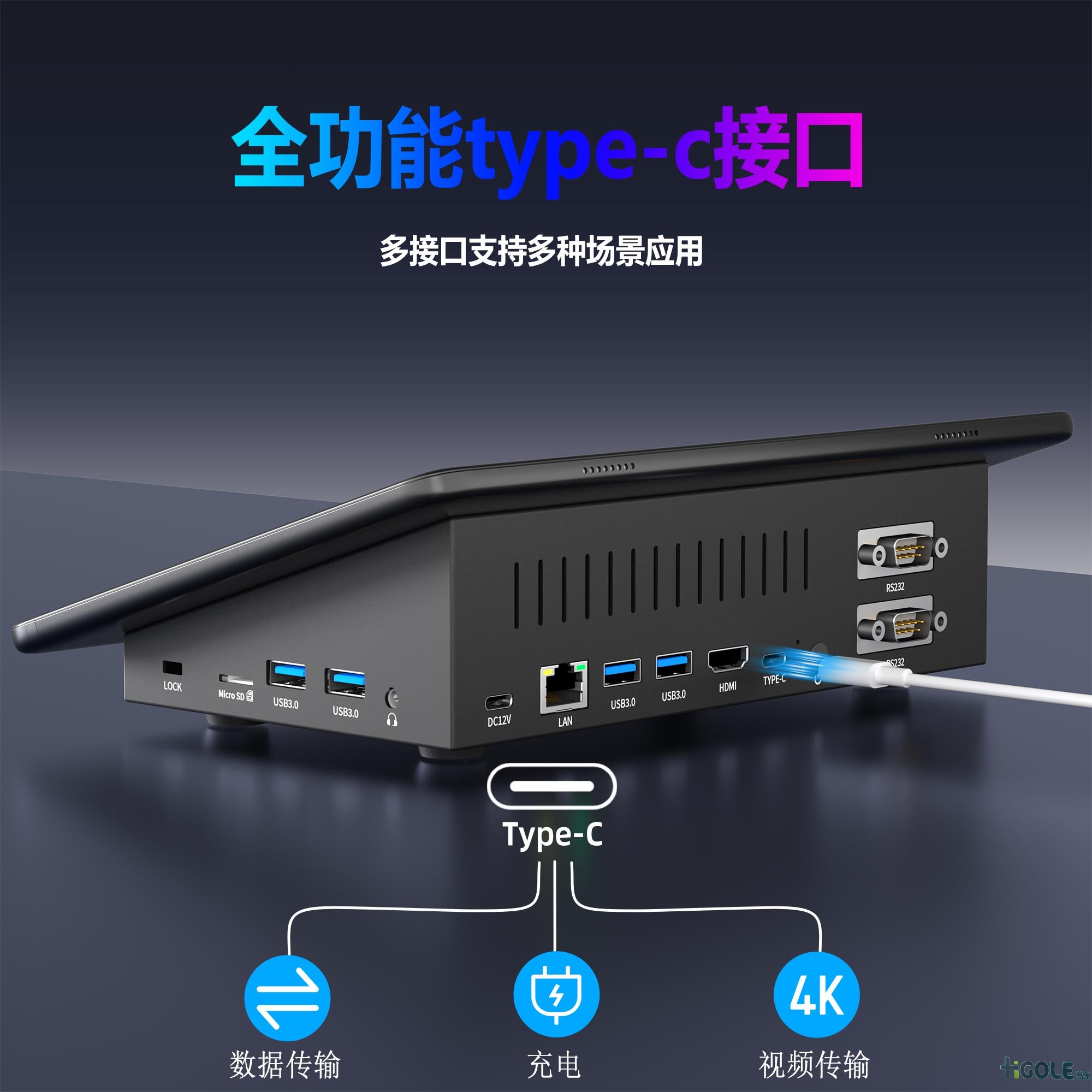

| Type-C | Type-C 3.1 | ×1pc（全功能 ,支持PD充電，視頻） |
| SD / TF Card reader | TF Card reader | ×1pc (up to 512GB) |
| Audio Jack | 3.5mm headphone (Output only) | ×1pc |
| 串口 | DB9 (RS232) | ×2pcs |

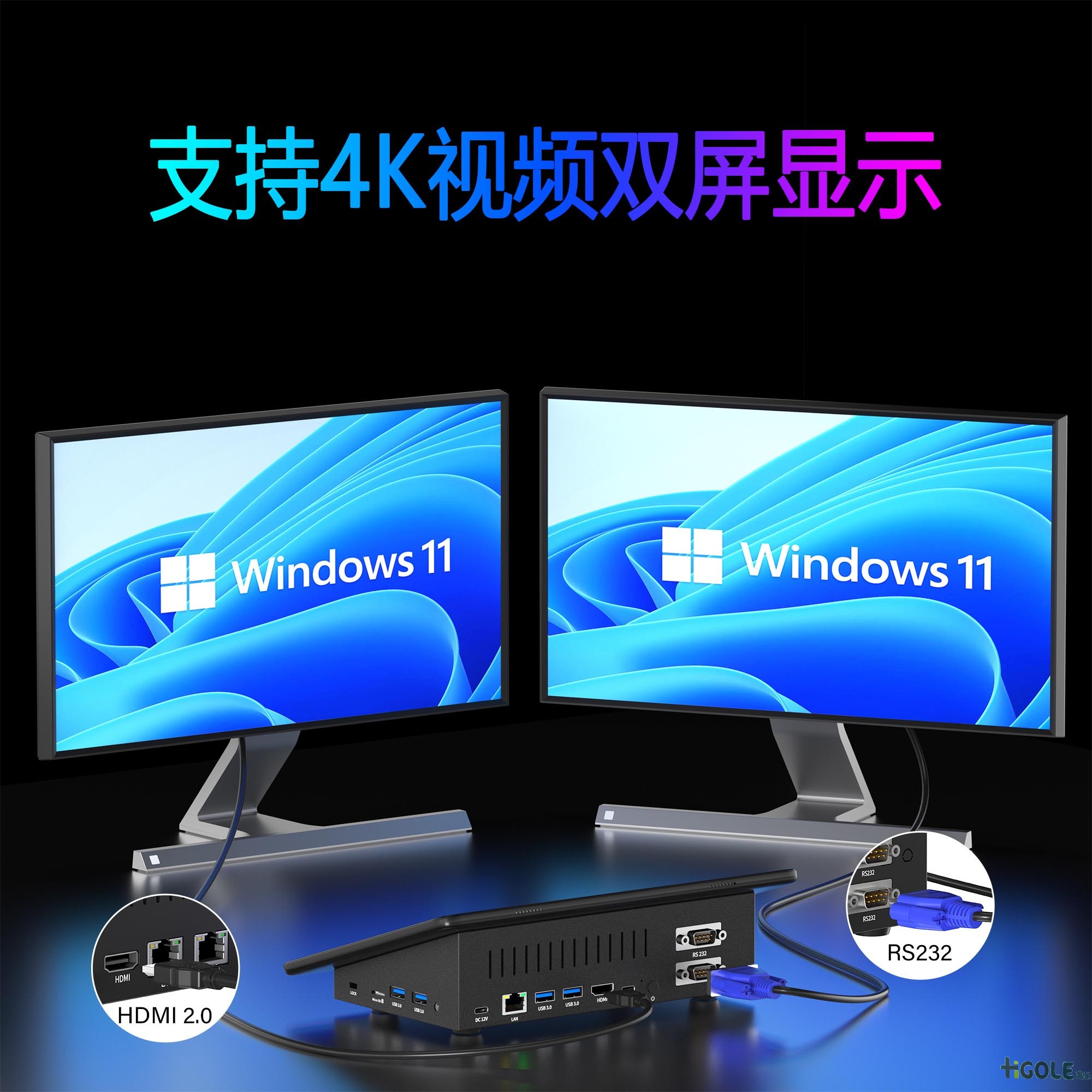

| HDMI | HDMI 2.0 | ×1pc |
| 按鍵 | ||
| Type | Details | Descriptions |
| 開關鍵 | On/Off | ×1pc |
| 音量鍵 | Down/UP | / |
| 重置功能 | Reset by Short Press | / |
| Main Accessories: | ||
| Type | Details | Descriptions |
| 適配器 | DC 12V/3A | ×1pc |
| 說明書 | User's Manual | ×1pc |
| 軟件支持 | ||
| Type | Details | Descriptions |
| 開關機方式 | By Power Button or Auto Power on | Optional |
| 網絡喚醒 | Wake up on Lan by RJ45 | / |
| PXE | Preboot Execution Environment | / |
| 系統 | Windows 11 | Optional |
| Linux | Optional | |
| 認證 | ||
| CE | CE | Yes |
| Other | Other | Optional |
